Data types#

In essence, the purpose of ERT is to pass uncertain parameter values to a forward model and then store the resulting outputs. Forward models include all necessary pre-processing and post-processing steps, as well as the computational model (e.g., a physics simulator like ECLIPSE) that produces the predictions. Consequently, ERT must be able to read and write data in a format compatible with the forward model.

Data managed by ERT are organized into distinct data types, each of which will be detailed in this chapter. The data types in ERT can be classified based on two main criteria:

  1. Dynamic behaviour: whether the data type is a static input to the simulator, such as porosity or permeability, or an output of the simulation.

  2. Implementation: this includes the type of files it can read and write, how it is configured, and so forth.

Note: All data types share a common namespace, meaning that each keyword must be globally unique.

Scalar parameters with a template: GEN_KW#

This section describes the distributions built into ERT that can be used as priors. For detailed description and examples on how to use the GEN_KW keyword, see here.

The algorithms used for updating parameters expect normally distributed variables. ERT supports other types of distributions by transforming normal variables as outlined next.

  1. ERT samples a random variable x ~ N(0,1) - before outputing to the forward model this is transformed to y ~ F(Y) where the distribution F(Y) is the correct prior distribution.

  2. When the prior simulations are complete ERT calculates misfits between simulated and observed values and updates the parameters; hence the variables x now represent samples from a posterior distribution which is Normal with mean and standard deviation different from (0,1).

The transformation prescribed by F(y) still “works” - but it no longer maps to a distribution in the same family as initially specified by the prior. A consequence of this is that the update process can not give you a posterior with updated parameters in the same distribution family as the Prior.

Reproducibility#

When ERT samples values there is a seed for each parameter. This means that if ERT is started with a fixed RANDOM_SEED each prior that is sampled will be identical. When running without a random seed ERT will output which random seed was used, so it is possible to reproduce results as long as that is kept.

This section only applies if a fixed seed is used:
  • If the ensemble size is increased from N -> N+1 the N first realizations will be identical to before

  • Parameter order is irrelevant

  • Parameter names are case sensitive, PARAM:MY_PARAM != PARAM:myParam

NORMAL: Gaussian Distribution#

The NORMAL keyword allows assigning a Gaussian (or normal) prior to a variable. It requires two arguments: a mean value and a standard deviation.

Syntax#

VAR NORMAL <mean_value> <standard_deviation>

Parameters#

  • <mean_value>: The mean of the normal distribution.

  • <standard_deviation>: The standard deviation of the normal distribution.

Example#

For a Gaussian distribution with mean 0 and standard deviation 1 assigned to the variable VAR:

VAR NORMAL 0 1

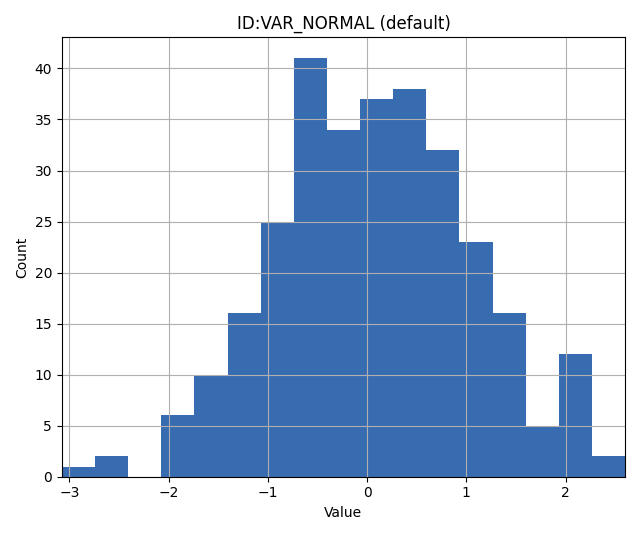

../../_images/normal.png

Notes#

The NORMAL keyword is integral for scenarios demanding priors that reflect typical real-world data patterns, as the Gaussian distribution is prevalent in many natural phenomena.

LOGNORMAL: Log Normal Distribution#

The LOGNORMAL keyword is used to assign a log normal prior to a variable. A variable is considered log normally distributed if the logarithm of that variable follows a normal distribution. If \(X\) is normally distributed, then \(Y = e^X\) is log normally distributed.

Log normal priors are especially suitable for modeling positive values that exhibit a heavy tail, indicating a tendency for the quantity to occasionally take large values.

Syntax#

VAR LOGNORMAL <log_mean> <log_standard_deviation>

Parameters#

  • <log_mean>: The mean of the logarithm of the variable.

  • <log_standard_deviation>: The standard deviation of the logarithm of the variable.

Example#

Histogram from values sampled from a lognormal variable specified with log-mean of 0 and log standard deviation 1.

VAR LOGNORMAL 0 1
../../_images/lognormal.png

TRUNCATED_NORMAL: Truncated Normal Distribution#

The TRUNCATED_NORMAL keyword is utilized to assign a truncated normal distribution to a variable. This distribution works as follows:

  1. Draw a random variable \(X \sim N(\mu,\sigma)\).

  2. Clamp \(X\) to the interval [min, max].

Syntax#

VAR TRUNCATED_NORMAL <mean> <standard_deviation> <min> <max>

Parameters#

  • <mean>: The mean of the normal distribution prior to truncation.

  • <standard_deviation>: The standard deviation of the distribution before truncation.

  • <min>: The lower truncation limit.

  • <max>: The upper truncation limit.

Example#

VAR TRUNCATED_NORMAL 2 0.7 0 4
../../_images/truncated_ok.png

UNIFORM: Uniform Distribution#

The UNIFORM keyword is used to assign a uniform distribution to a variable. A variable is considered uniformly distributed when it has a constant probability density over a closed interval. Thus, the uniform distribution is fully characterized by it’s minimum and maximum values.

Syntax#

VAR UNIFORM <min_value> <max_value>

Parameters#

  • <min_value>: The lower bound of the uniform distribution.

  • <max_value>: The upper bound of the uniform distribution.

Example#

To assign a uniform distribution spanning between 0 and 1 to a variable named VAR:

VAR UNIFORM 0 1
../../_images/uniform.png

Notes#

It can be shown that among all distributions bounded below by \(a\) and above by \(b\), the uniform distribution with parameters \(a\) and \(b\) has the maximal entropy (contains the least information).

LOGUNIF: Log Uniform Distribution#

The LOGUNIF keyword is used to assign a log uniform distribution to a variable. A variable is said to be log uniformly distributed when its logarithm displays a uniform distribution over a specified interval, [a, b].

Syntax#

VAR LOGUNIF <min_value> <max_value>

Parameters#

  • <min_value>: The lower bound of the log uniform distribution.

  • <max_value>: The upper bound of the log uniform distribution.

Example#

To assign a log uniform distribution ranging from 0.00001 to 1 to a variable:

VAR LOGUNIF 0.00001 1
../../_images/loguniform.png

Notes#

The log uniform dstribution is useful when modeling positve variables that are heavily skewed towards a boundary.

CONST: Dirac Delta Distribution#

The CONST keyword ensures that a variable always takes a specific, unchanging value.

Syntax#

VAR CONST <value>

Parameters#

  • <value>: The fixed value to be assigned to the variable.

Example#

To assign a value of 1.0 to a variable:

VAR CONST 1.0
../../_images/const.png

DUNIF: Discrete Uniform Distribution#

The DUNIF keyword assigns a discrete uniform distribution to a variable over a specified range and number of bins.

Syntax#

VAR DUNIF <nbins> <min_value> <max_value>

Parameters#

  • <nbins>: Number of discrete bins or possible values.

  • <min_value>: The minimum value in the range.

  • <max_value>: The maximum value in the range.

Example#

To create a discrete uniform distribution with possible values of 1, 2, 3, 4, and 5:

VAR DUNIF 5 1 5
../../_images/dunif.png

Notes#

Values are derived based on the formula: \(\text{min} + i \times (\text{max} - \text{min}) / (\text{nbins} - 1)\) Where \(i\) ranges from 0 to \(\text{nbins} - 1\).

ERRF: Error Function-Based Prior#

The ERRF keyword allows creating prior distributions derived from applying the normal CDF (involving the error function) to a standard normal variable. Note that the CDF is not necessarily the standard normal, as SKEWNESS and WIDTH corresponds to its negative mean and standard deviation respectively. This allows flexibility in creating distributions of diverse shapes and symmetries.

Syntax#

VAR8 ERRF MIN MAX SKEWNESS WIDTH

Parameters#

  • MIN: The minimum value of the transform.

  • MAX: The maximum value of the transform.

  • SKEWNESS: The asymmetry of the distribution.

    • SKEWNESS < 0: Shifts the distribution towards the left.

    • SKEWNESS = 0: Results in a symmetric distribution.

    • SKEWNESS > 0: Shifts the distribution towards the right.

  • WIDTH: The peakedness of the distribution.

    • WIDTH = 1: Generates a uniform distribution.

    • WIDTH > 1: Creates a unimodal, peaked distribution.

    • WIDTH < 1: Forms a bimodal distribution with peaks.

Examples#

  1. For a symmetric, uniform distribution:

    VAR ERRF -1 1 0 1

../../_images/errf_symmetric_uniform.png
  1. For a right-skewed, unimodal distribution:

    VAR ERRF -1 1 2 1.5

../../_images/errf_right_skewed_unimodal.png

Notes#

Keep in mind the interactions between the parameters, especially when both SKEWNESS and WIDTH are adjusted. Their combination can result in a wide range of distribution shapes.

DERRF: Discrete Error Function-Based Distribution#

The DERRF keyword is a discrete version of the ERRF keyword. It is designed for creating distributions based on the error function but with discrete output values. This keyword facilitates sampling from discrete distributions with various shapes and asymmetries.

Syntax#

VAR DERRF NBINS MIN MAX SKEWNESS WIDTH

Parameters#

  • NBINS: The number of discrete bins or possible values.

  • MIN: The minimum value of the distribution.

  • MAX: The maximum value of the distribution.

  • SKEWNESS: The asymmetry of the distribution.

    • SKEWNESS < 0: Shifts the distribution towards the left.

    • SKEWNESS = 0: Produces a symmetric distribution.

    • SKEWNESS > 0: Shifts the distribution towards the right.

  • WIDTH: The shape of the distribution.

    • WIDTH close to zero, for exampe 0.01: Generates a uniform distribution.

    • WIDTH > 1: Leads to a unimodal, peaked distribution.

    • WIDTH < 1: Forms a bimodal distribution with peaks.

Examples#

  1. For a discrete symmetric, uniform distribution with five bins:

    VAR_DERRF1 DERRF 5 -1 1 0 1

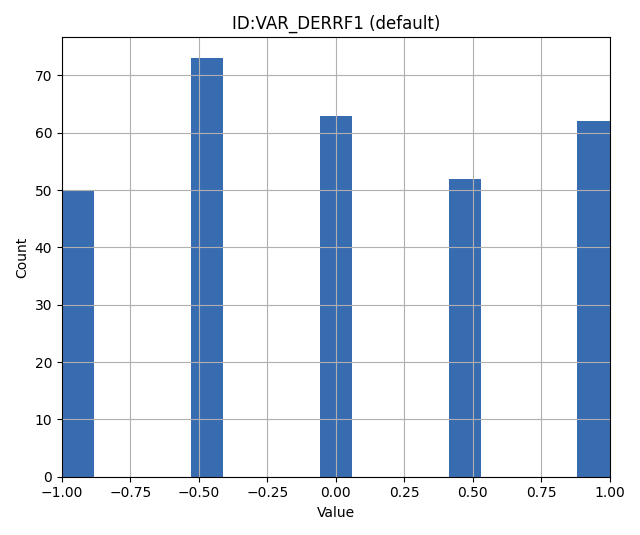

../../_images/derrf_symmetric_uniform.png
  1. For a discrete right-skewed, unimodal distribution with five bins:

    VAR_DERRF2 DERRF 5 -1 1 2 1.5

../../_images/derrf_right_skewed.png

TRIANGULAR: Triangular Distribution#

The TRIANGULAR keyword is used to define a triangular distribution, which is shaped as a triangle and is determined by three parameters: minimum, mode (peak), and maximum.

Syntax#

VAR TRIANGULAR MIN MODE MAX

Parameters#

  • XMIN: The minimum value of the distribution.

  • XMODE: The location (value) where the distribution reaches its maximum (or peak).

  • XMAX: The maximum value of the distribution.

Description#

The triangular distribution is a continuous probability distribution with a probability density function that is zero outside the interval [XMIN, XMAX], and is linearly increasing from XMIN to XMODE and decreasing from XMODE to XMAX.

Example#

To define a triangular distribution with a minimum of 1, mode (peak) of 3, and maximum of 5:

VAR_TRIANGULAR TRIANGULAR 1 3 5
../../_images/triangular.png

Loading GEN_KW values from an external file#

The default use of the GEN_KW keyword is to let the ERT application sample random values for the elements in the GEN_KW instance, but it is also possible to tell ERT to load a precreated set of data files, this can for instance be used as a component in an experimental design based workflow. When using external files to initialize the GEN_KW instances you supply an extra keyword INIT_FILE:/path/to/priors/files%d which tells where the prior files are:

GEN_KW  MY-FAULTS   MULTFLT.tmpl   MULTFLT.INC   MULTFLT.txt    INIT_FILES:priors/multflt/faults%d

In the example above you must prepare files priors/multflt/faults0, priors/multflt/faults1, … priors/multflt/faultsn which ert will load when you initialize the case. The format of the GEN_KW input files can be of two varieties:

  1. The files can be plain ASCII text files with a list of numbers:

1.25
2.67

The numbers will be assigned to parameters in the order found in the MULTFLT.txt file.

  1. Alternatively values and keywords can be interleaved as in:

FAULT1 1.25
FAULT2 2.56

in this case the ordering can differ in the init files and the parameter file.

The heritage of the ERT program is based on the EnKF algorithm, and the EnKF algorithm evolves around Gaussian variables - internally the GEN_KW variables are assumed to be samples from the N(0,1) distribution, and the distributions specified in the parameters file are based on transformations starting with a N(0,1) distributed variable. The slightly awkward consequence of this is that to let your sampled values pass through ERT unmodified you must configure the distribution NORMAL 0 1 in the parameter file; alternatively if you do not intend to update the GEN_KW variable you can use the distribution RAW.

3D field parameters: FIELD#

The FIELD data type is used to parametrize quantities which have extent over the full grid; porosity and permeability are the most typical examples of quantities which are estimated and modelled with the FIELD data type. In the configuration file the FIELD keywords are configured like this:

FIELD  PORO PARAMETER  poro.grdecl  .....

PORO is in principle an arbitrary string ID, but if the fields in question represent e.g. the porosity use of a matching string of course makes sense. The string “PARAMETER” serves no purpose at the moment, but is legacy from the time when ERT could do full EnKF and also needed to handle dynamic fields like pressure and saturations.

The “poro.grdecl” argument represents the name of the file which ert will prepare for the forward model, observe the reservoir data file must have an INCLUDE statement corresponding to this file, i.e.

INCLUDE
    'poro.grdecl' /

For the example above.

Field initialization#

Observe that ERT can not sample field variables internally, they must be supplied through another application - typically geo modelling software like RMS; so to use the FIELD datatype you must have a workflow external to ERT which can create/sample the fields. When you have established a workflow for generating these fields externally there are two ways to load them into ERT: INIT_FILES to load pregenerated initial fields or FORWARD_INIT to load as part of the forward model.

Initialization with INIT_FILES#

In the situation where you do not have geo modelling as a part of the forward model you will typically use the geo modelling software to create an ensemble of geological realisations up front. Assuming you intend to update the porosity these realisations should typically be in the form of files /path/poro_0.grdecl, /path/poro_1.grdecl, ... /path/poro_99.grdecl. The INIT_FILES: directive is used to configure ERT to load those files when ERT is initializing the data. The number 0, 1, 2, ... should be replaced with the integer format specified %d - which ERT will replace with the realization number runtime, i.e.

FIELD ... INIT_FILES:/path/poro_%d.grdecl

in this case. The files can be in eclipse grdecl format or rms roff format; the type is determined from the extension so you should use the common extensions grdecl or roff.

Initialization with FORWARD_INIT#

When geomodelling is an integrated part of the forward model it is more attractive to let the forward model generate the parameter fields. To enable this we must pass the FORWARD_INIT:True when configuring the field, and also pass a name in the INIT_FILES:poro.grdecl for the file which should be generated by the forward model component.

Observe that there are two important differences to the INIT_FILES: attribute when it used as the way to initialize fields, and when it is used in combination with FORWARD_INIT:True. When INIT_FILES: is used alone the filename given should contain a %d which will be replaced with realization number, when used with FORWARD_INIT:True that is not necessary. Furthermore in the FORWARD_INIT:True case the the path is interpreted relative to the runpath folder, whereas in the other case the path is interpreted relative to the location of the main ERT configuration file.

When using FORWARD_INIT:True together with an update algorithm in ERT the field generated by the geo modelling software should only be used in the first iteration (prior), in the subsequent iterations the forward model should use the field as it comes out from ERT. The typical way to achieve this is:

  1. The forward model component outputs to a temporary file tmp_poro.grdecl.

  2. In the first iteration ERT will not output a file poro.grdecl, but in the second and subsequent iterations a poro.grdecl file will be created by ERT - this is at the core of the FORWARD_INIT:True functionality.

  3. In the forward model there should be a job CAREFUL_COPY_FILE which will copy tmp_poro.grdecl only if poro.grdecl does not already exist. The rest of the forward model components should use poro.grdecl.

note

With regards to behavior relative to the values in storage; What is really happening is that if ERT has values, those will be dumped to the runpath, and if not, it will read those from the runpath after the forward model finishes. However, if you change your runpath and “case” in the config file, but not your storage case, you will end up with the same parameter values but different RMS seed.

Field transformations#

For Assisted history matching, the variables in ERT should be normally distributed internally - the purpose of the transformations is to enable working with normally distributed variables internally in ERT and expose another distribution to the forward model through the use of transformations. Thus, the optional arguments INIT_TRANSFORM:FUNC and OUTPUT_TRANSFORM:FUNC are used to transform the user input of parameter distribution. INIT_TRANSFORM:FUNC is a function which will be applied when the field is loaded into ERT. OUTPUT_TRANSFORM:FUNC is a function which will be applied to the field when it is exported from ERT, and FUNC is the name of a transformation function to be applied. The available functions are listed below:

“POW10” : This function will raise x to the power of 10: \(y = 10^x\)
“TRUNC_POW10” : This function will raise x to the power of 10 - and truncate lower values at 0.001.
“LOG” : This function will take the NATURAL logarithm of \(x: y = \ln{x}\)
“LN” : This function will take the NATURAL logarithm of \(x: y = \ln{x}\)
“LOG10” : This function will take the log10 logarithm of \(x: y = \log_{10}{x}\)
“EXP” : This function will calculate \(y = e^x\).
“LN0” : This function will calculate \(y = \ln{x} + 0.000001\)
“EXP0” : This function will calculate \(y = e^x - 0.000001\)

The most common scenario is that a log-normal distributed permeability in the geo modelling software is transformed to become normally distributted in ERT, to achieve this you do:

  1. INIT_TRANSFORM:LOG To ensure that the variables which were initially log-normal distributed are transformed to normal distribution when they are loaded into ERT.

  2. OUTPUT_TRANSFORM:EXP To ensure that the variables are reexponentiated to be log-normal distributed before going out to Eclipse.

2D Surface parameters: SURFACE#

The SURFACE keyword can be used to work with surface from RMS in the irap format. For detailed description and examples see here.

Regarding templates:

You may supply the arguments TEMPLATE:/template/file and KEY:MaGiCKEY. The template file is an arbitrary existing text file, and KEY is a magic string found in this file. When ERT is running the magic string is replaced with parameter data when the ECLIPSE_FILE is written to the directory where the simulation is run from. Consider for example the following configuration:

TEMPLATE:/some/file   KEY:Magic123

The template file can look like this (only the Magic123 is special):

Header line1
Header line2
============
Magic123
============
Footer line1
Footer line2

When ERT is running the string Magic123 is replaced with parameter values, and the resulting file will look like this:

Header line1
Header line2
============
1.6723
5.9731
4.8881
.....
============
Footer line1
Footer line2

Simulated data#

The datatypes in the Simulated data chapter correspond to datatypes which are used to load results from a forward model simulation and into ERT. In a model updating workflow instances of these datatypes are compared with observed values and that is used as basis for the update process. Also post processing tasks like plotting and QC is typically based on these data types.

Summary: SUMMARY#

The SUMMARY keyword is used to configure which summary vectors you want to load from the (Eclipse) reservoir simulation. In its simplest form, the SUMMARY keyword just lists the vectors you wish to load. You can have multiple SUMMARY keywords in your config file, and each keyword can mention multiple vectors:

SUMMARY  WWCT:OP_1  WWCT:OP_2  WWCT:OP_3
SUMMARY  FOPT FOPR  FWPR
SUMMARY  GGPR:NORTH GOPR:SOUTH

If you in the observation use the SUMMARY_OBSERVATION or HISTORY_OBSERVATION keyword to compare simulations and observations for a particular summary vector you need to add this vector after SUMMARY in the ERT configuration to have it plotted.

You can use wildcard notation to all summary vectors matching a pattern, i.e. this:

SUMMARY WWCT*:* WGOR*:*
SUMMARY F*
SUMMARY G*:NORTH

will load the WWCT and WWCTH, as well as WGOR and WGORH vectors for all wells, all field related vectors and all group vectors from the NORTH group.

General data: GEN_DATA#

The GEN_DATA keyword is used to load text files which have been generated by the forward model. For detailed description and examples see here.

EnKF heritage#

With regards to the datatypes in ERT this is a part of the application where the EnKF heritage shows through quite clearly, the datetypes offered by ERT would probably be different if ERT was made for Ensemble Smoother from the outset. Pecularites of EnKF heritage include:

  1. The FIELD implementation can behave both as a dynamic quantity, i.e. pressure and saturation, and static property like porosity. In ERT it is currently only used as a parameter.

  2. The parameter types have an internal pseudo time dependence corresponding to the “update time” induced by the EnKF scheme. This pseudo time dependence is not directly exposed to the user, but it is still part of the implementation and e.g. when writing plugins which work with parameter data managed by ERT you must relate to it.

  3. The time dependence of the GEN_DATA implementation. This is just too complex, there have been numerous problems with people who configure the GEN_DATA keywords incorrectly.
